YU1QT MOXON STACKS
Want gain? How
about 3 Element Stacked Moxons for 20, 15 & 10 meters?
Continuing for his
designs and plots for 2 element stacked Moxons, Andra has shown
below plans for stacked 3 element Moxon's for 20, 15 and 10 meter
bands. His plans for construction are shown below.
![](3element1.gif)
![](3element2.gif)
![2 x 3el Moxon 3el 14 V plot dia.png](2 x 3el Moxon 3el 14 V plot dia.png)
3el 20m Moxon was mounted on 45 and 31.4m.
Tf cable 2 x 15.1m, 75 ohm with v.f. 0,66. ![2 x 3el Moxon 3el 14 H plot dia.png](2 x 3el Moxon 3el 14 H plot dia.png)
![2 x 3el Moxon 3el 14 SWR.png](2 x 3el Moxon 3el 14 SWR.png)
![Moxon 3 el. 15m.jpg](Moxon 3 el. 15m.jpg)

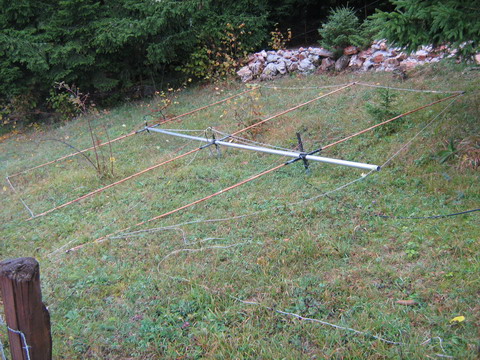

3
element 15 meter moxon under construction
3el 15m Moxon mounted on 7 and 15m.
Tf cable 2x 10.09m, 75 ohm with v.f. 0,66. ![2 x 3el Moxon 3el 21 V plot dia.png](2 x 3el Moxon 3el 21 V plot dia.png)
![2 x 3el Moxon 3el 21 H plot dia.png](2 x 3el Moxon 3el 21 H plot dia.png)
![2 x 3el Moxon 3el 21 SWR.png](2 x 3el Moxon 3el 21 SWR.png)
![2 x 3el Moxon 3el 28 V plot dia.png](2 x 3el Moxon 3el 28 V plot dia.png)
3el 10m Moxon mounted on 10 nad 16m.
Tf cable 2x 6.79m, 75 ohm with v.f. 0,66. ![2 x 3el Moxon 3el 28 H plot dia.png](2 x 3el Moxon 3el 28 H plot dia.png)
![2 x 3el Moxon 3el 28 SWR.png](2 x 3el Moxon 3el 28 SWR.png)
![first protype 3 28 wooden.jpg](first protype 3 28 wooden.jpg)
3
element 28mhz Moxon made of wood.
![T99W or E71A lokation.jpg](T99W or E71A lokation.jpg)
T99W
or E71A locations
